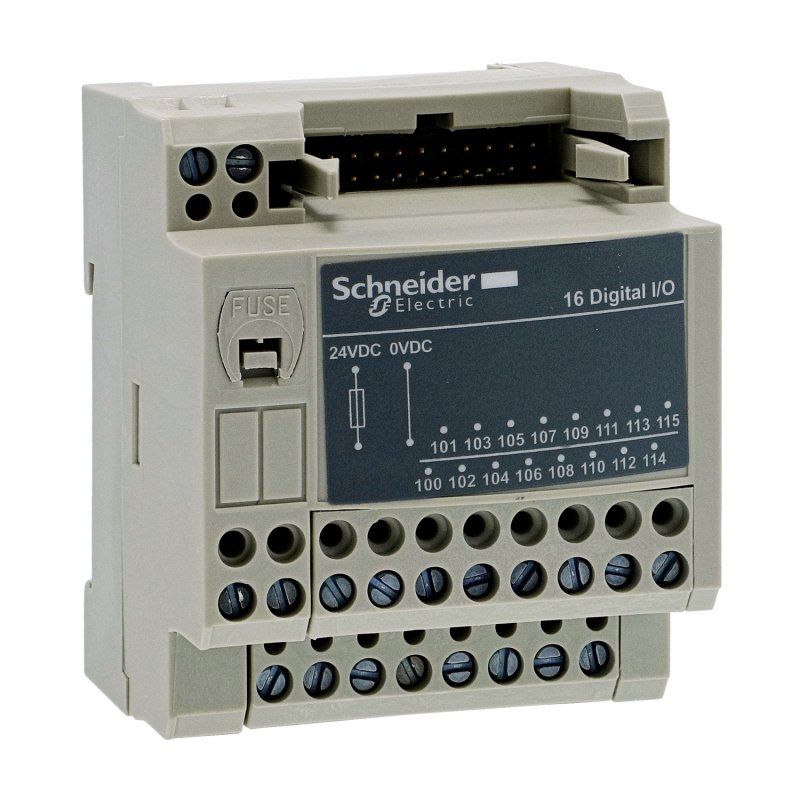

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system.This is a passive connection sub-base for 16 channels as digital I/O, with 1 terminal per channel.Its control circuit voltage is 24VDC.It provides a digital I/O control function.It is furnished with screw terminals for electrical connection and 20-way HE10 connection to programmable logic controllers.The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver.It is a economy sub-base with IP20 degree of protection.It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts.This product is certified by EAC.It is suitable for use with TSX Micro and Premium PLCs, and Modicon X80 I/O modules.It is delivered in 1 package (PCE type).Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit).Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
