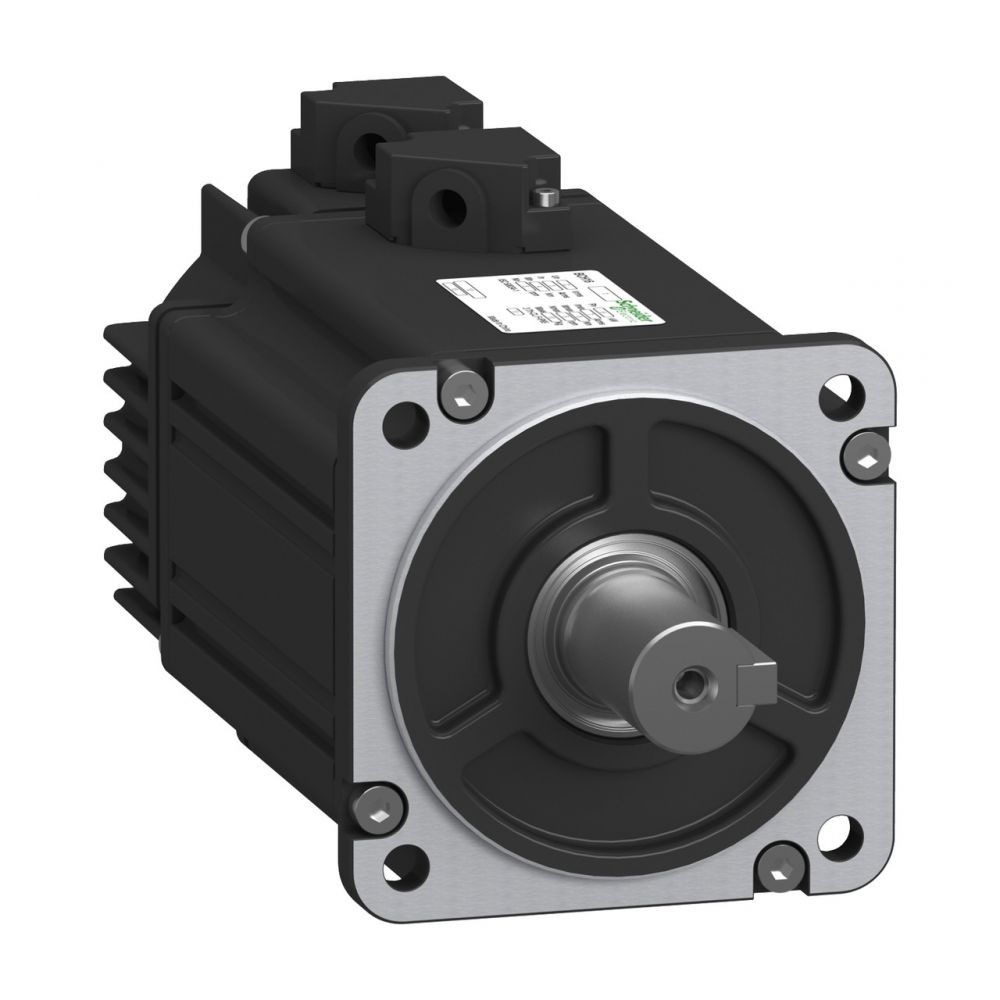

This motor is dedicated to Easy Lexium 16D servo drives. This BCH16 motor has a 80mm flange, with a 19mm shaft diameter. Its continuous power is 750W with heavy inertia. Its nominal speed is 3000rpm. It is equipped with a 23bit high resolution encoder. Motor shafts have degree of protection IP 65 as standard. It measures 80mm wide, 93mm high, 137mm deep and weighs 2.7kg. Easy Lexium 16 servo drive and BCH16 motor combinations are designed for easy integration and commissioning in simple machines with position control applications and low or high speed positioning, simple movement. This motor is designed for compatibility with LXM16DU07M2X and LXM16MU07M2X servo drives.
